| Water Softeners | Water Filters | ||||
| Also Reduce Ferrous Iron | Also Reduce Chlorine | Iron Filter | Neutralizing Filter | ||

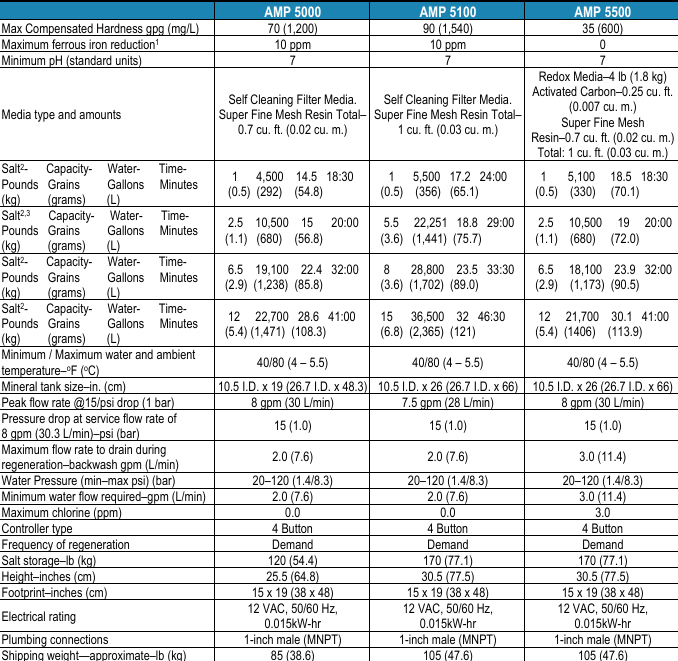

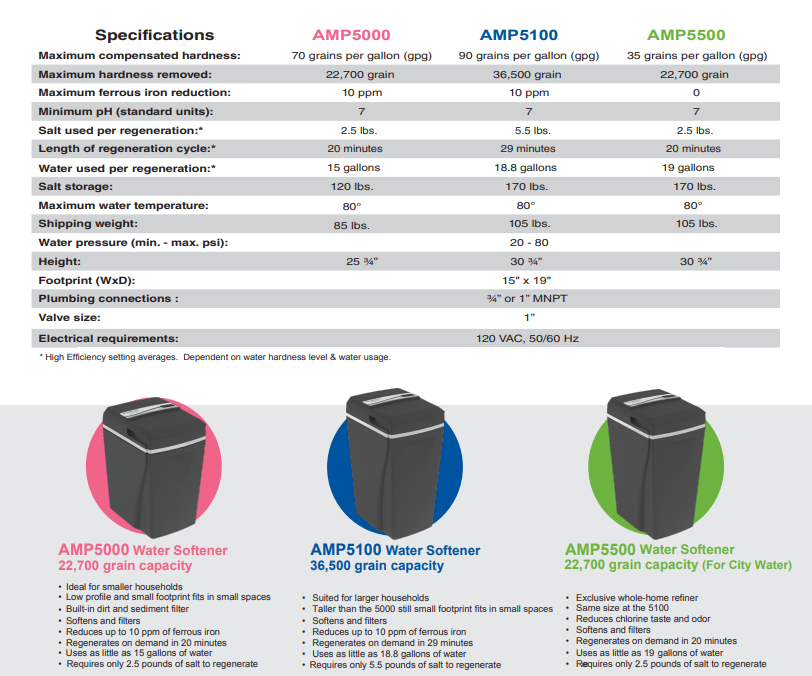

| SPECIFICATIONS | AMP5000 | AMP5100 | AMP5500 | AMP51IF | AMP51NF |
| Max. compensated hardness: | 70 grains per gallon (gpg) | 90 grains per gallon (gpg) | 70 grains per gallon (gpg) | N/A | N/A |
| Maximum capacity: | 22,100 grains | 36,400 grains | 22,100 grains | N/A | N/A |
| Maximum ferrous iron reduction: | 10 ppm | 10 ppm | 0 | 15 ppm | N/A |
| Minimum pH (standard units): | 7 | 7 | 7 | 7 | 6.3 |
| Salt used per regeneration: | 2.5 lbs* | 3 lbs* | 2.5 lbs* | 2.8 oz** | Backwash only |
| Length of regeneration cycle: | 20 minutes* | 21 minutes* | 20 minutes* | 44 minutes | 7 minutes |
| Water used per regeneration: | 16.4 gallons* | 17.5 gallons* | 20.2 gallons* | 66 gallons | 35 gallons |
| Hardness removed per regeneration: | 10,400 grains* | 15,400 grains* | 10,400 grains* | N/A | N/A |
| Plumbing connections: | 3/4″ or 1″ MNPT | 3/4″ or 1″ MNPT | 3/4″ or 1″ MNPT | 3/4″ or 1″ MNPT | 3/4″ or 1″ MNPT |
| Valve size: | 1″ | 1″ | 1″ | 1″ | 1″ |
| Salt storage capacity: | 120 lbs. | 160 lbs. | 160 lbs. | Up To 10 lbs.* | N/A |
| Electrical requirements: | 110/120 VAG, 12V 50/60 cycle | 110/120 VAG, 12V 50/60 cycle | 110/120 VAG, 12V 50/60 cycle | 110/120 VAG, 12V 50/60 cycle | |
| Maximum water temperature: | 120°F | 120°F | 120°F | 80°F | 120°F |
| Water pressure (min-max psi): | 20-120 | 20-120 | 20-120 | 30-120 | 30-120 |
| Footprint (WxD): | 14.75″ x 18.75″ | 14.75″ x 18.75″ | 14.75″ x 18.75″ | 15″ x 26″ | 15″ x 26″ |
| Height: | 25.5″ | 30.5″ | 30.5″ | 30.5″ | 30.5″ |
| Shipping Weight: | 85 lbs. | 105 lbs. | 105 lbs. | 115 lbs. | 125 lbs. |
Operational maintenance and replacement requirements are essential for the product to perform to specification.
*Average at High Efficiency setting. Dependent on water hardness level and water usage. ** Potassium Permanganate.
Click here to download the brochure
Cliquez ici pour télécharger une brochure en français
